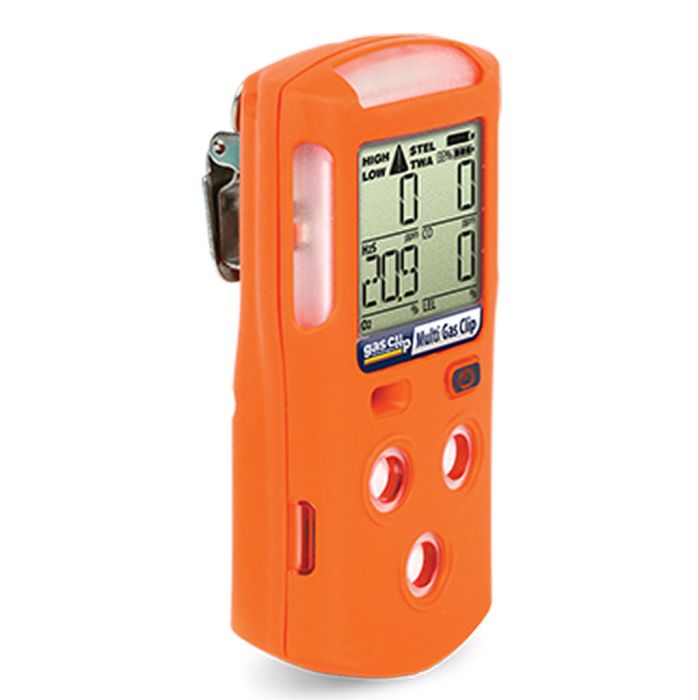

Multi Gas Clip

Features
• 2 month battery life (continuous run time)
• 1 year calibration cycle
• Will work in inert environments, no need for oxygen
• Simple to use
• Bump/Calibration reminders
• Docking station compatible
• Programmable user ID

Dawnloads :
File
Size • Weight 4.7” H x 2.4” W x 1.2” D (118.6 x 61.6 x 31.7 mm) • 7.7 oz. (240 g)
Temperature -4˚ to +122˚F (-20˚ to +50˚C)
Humidity 5% to 95% RH (non-condensing)
Battery Life 60 days (continuous)
Charge Time 4 – 6 hours
Alarms Visual, vibrating & audible (minimum 95 dB) Low, High, STEL, TWA & OL (Over Limit)
LEDs 4 Red alarm bar LEDs

Yellow back-light (activated on button press)

Red back-light (activated on alarm condition)

Yellow maintenance notification LED

Display High viewing angle alphanumeric Liquid Crystal Display (LCD)

Logs 25 Bump tests

25 Events

25 Calibrations

Continuous 1-second data logging (typical capacity > 2 months)

Tests Full-function self-test upon activation

Sensors, battery and circuitry tests run continuously

Ratings EMC Directive 2004/108/EC IP 67
Certifications and Approvals CSA: CSA13CA0014

Intrinsically Safe/Sécurité lntrinsèque

Class I, Division 1, Group A, B, C and D, T4

Ex ia IIC T4 Ga

Class I, Zone 0, AEx ia IIC T4 Ga

-20˚C ≤ Ta ≤ 50˚C; 4.2 Vdc

ANSI/ISA 12.13.01-2000

C22.2 No 152 – M1984

C22.2 No 60079-0:11

C22.2 No 60079-11:14



IECEx: IECEx CSA 13.0014

Ex ia IIC Ga

IEC 60079-1:2014-06 Edition: 7.0

-20˚C ≤ Ta ≤ 50˚C

IEC 60079-0:2017 Edition: 7.0

IEC 60079-11:2011 Edition: 6.0



ATEX: SIRA 14ATEX2013

Ex ia IIC T4 Ga

-20˚C ≤ Ta ≤ 50˚C

EN IEC 60079-0:2018

EN 60079-11:2012



UKCA: CSAE 22UKEX1230

EX ia IIC T4 Ga

-20˚C ≤ Ta ≤ 50˚C

EN IEC 60079-0:2018

EN 60079-11:2012

Gases H 2S……………………………0 – 100 ppm (0.1 ppm increments)

CO…………………………….0 – 500 ppm (1 ppm increments)

Combustible (LEL)…0 – 100% LEL (0.1% increments)

O2……………………………..0 – 30% vol. (0.1% increments)

Sensor Type H2S, CO & O2……………Plug-in electrochemical cell

Combustible (LEL)…Plug-in infrared

Recommended Calibration Frequency 1 year
