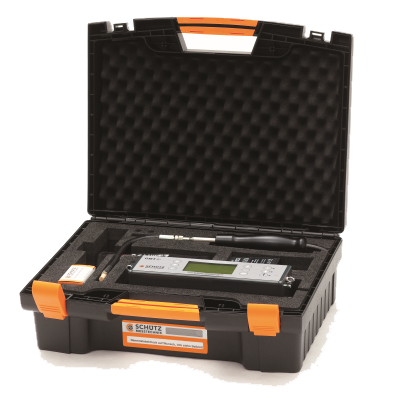

GM 5

The main task of the GM 5 is the search for gas leaks in underground and exposed natural gas pipelines. The GM 5 can also be used for gas leak detection with hydrogen mixtures (tracer gas technology).

With the GM 5, Schütz Messtechnik offers a gas measurement device with which all gas network inspection tasks can be carried out precisely and reliably. The graphic menu navigation enables simple, yet safe operation of the device.

Dawnloads :
File
Display LCD graphic display, automatic backlight
Pump Diaphragm pump, flow rate adjustable and monitored
Sensitivity 1 ppm
Measurement Range 1ppm – 2,2 Vol.% CH4
0 – 100 % UEG
0 – 100 Vol.% CH4
0 – 100 Vol.% CO2 (optional)
Sensors Semiconductor
Thermal tone
Thermal conductivity
Infrared for CO2 (optional)
Gases Methane, propane, hydrogen, carbon dioxide
Protection Class IP54
Ex Protection EX d ib IIB T3 Gb, Category II 2G
applicable for Zone 1
Power Supply Batteries 3x 1,5 V Mono or rechargeable batteries 3x 1,2 V Mono
Operation Time about 14 hours
Dimensions 215 x 60 x 100 mm
Weight approx. 1.8kg
